barcol hardness test for grp

barcol hardness test for grp-934-1 Barcol Hardness Tester Indentation Hardness Tester

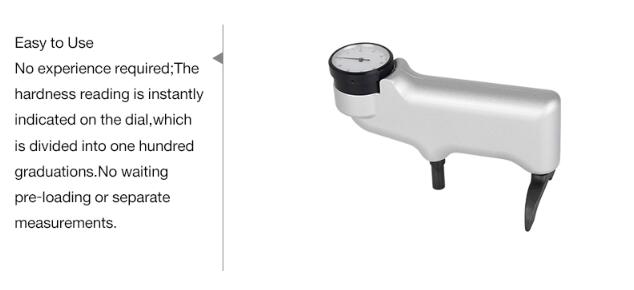

934-1 Barcol Hardness Tester Indentation Hardness Tester

Description

The Barcol hardness tester is an indentation type hardness tester. It is fast, simple, and easy to test. It can be used to quickly test the hardness of aluminum and aluminum alloy materials and meet the American standard ASTM B648.

Use

The Barcol hardness tester is mainly used to test the hardness of aluminum and aluminum alloys. It can also test the hardness of other soft metals and glass steel products. Can test a variety of oversized, ultra-wide, ultra-thick workpieces and assemblies, testing plates, strips, profiles, forgings, castings and so on.



934-1 Barcol Hardness Tester Indentation Hardness Tester

Technical Parameters

Range	0~100HBa
Effective measurement range	equivalent to 25~135HBW
Resolution	0.5HBa
Indication error	42~52 HBa ±2.0 HBa 84~88 HBa ±1.0 HBa
Repeatability error	42-52 HBa ±2.5 HBa 84~88 HBa ±1.5 HBa

Standard configuration

Main part	1	Calibration block	2
Calibration wrench	1	Spare needle	2
