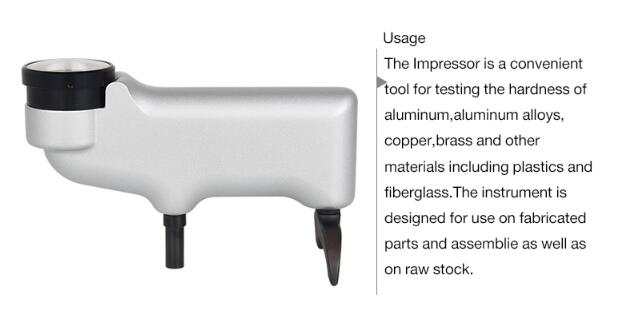

barcol hardness test unit

Product Description

 934-1 for soft metals such as aluminum and its alloys,brass,copper,and some of the harder plastics and fiberglass. Approximate range 25 to 150 Brinell(10 mm ball 500 kg load).This unit meets
American Society for Testing and Materials(ASTM) Standard D-2583



Indenter:

Indenter:	26°pan head cone
Head face diameter:	0.157mm
Testing Range:	0-100HBa(25-135HBW)
Resolution:	0.5HBa
Indication error hardness range	81-88HBa ±1HBa   42-48HBa ±2HBa
Repeatability error:	81-88HBa ±1.5HBa   42-48HBa ±2.5HBa
