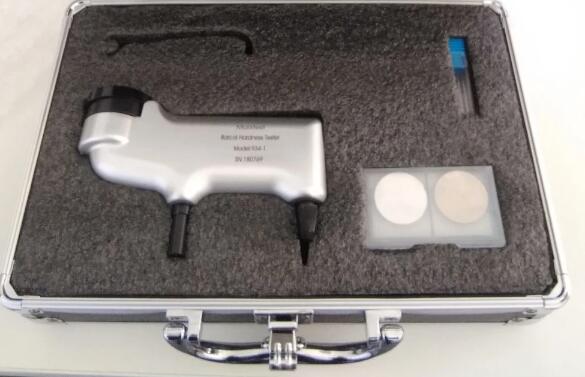

barcol hardness tester unit-Portable Indentation Barcol Hardness Tester
Standard Barcol hardness tester is mainly used to test aluminum and aluminum alloys. Wechsler hardness tester is used to test aluminum alloy profile, plate and pipe. To test aluminum, soft aluminum, super thick aluminum alloy, aluminum alloy bar and assembled aluminum alloy products (such as aluminum alloy doors, windows, fire ladders, etc., it should be used Barcol hardness tester.
It is also used to test FRP (glass fiber reinforced plastics), hard plastics, etc.
The improved Barcol hardness meter can be used for softer plastics, very soft metals, leather, rubber, etc.
Related standards: ASTM B648, GB/T3854-2005, ASTM D2583-07.
|
Press needle
|
26°truncated cone, end diameter 0.176mm
|
|
Test range
|
0~100HBa,equivalent to 25~135HBW
|
|
Resolution
|
0.5HBa
|
|
Indication error
|
Hardness range: 42~52HBa ±2HBa
|
|
|
Hardness range: 84~88HBa ±1HBa
|
|
Repeatability error
|
Hardness range: 42~52HBa ±2HBa
|
|
|
Hardness range: 84~88HBa ±1HBa
|
|
Weight
|
0.5kg
|
|
Standard configuration
|
Mainframe, spare needle (2), high value standard hardness block (1), low value standard hardness block (1), correction wrench, foot, instrument box
|
