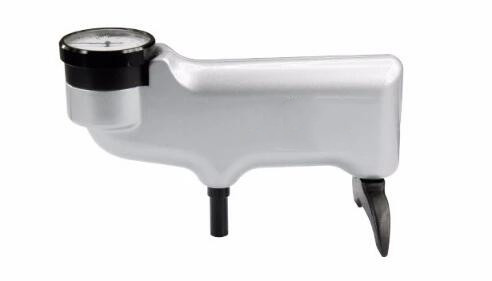

gyzj-934-1 barcol hardness tester

gyzj-934-1 barcol hardness tester-

 Barcol hardness tester (barcol hardness tester) is a indentation hardness meter. It presses a specific indentation head into the sample under the action of the standard spring force and determines the hardness of the sample with the depth of indentation.The barcol hardness tester has 100 scales, each representing a depth of 0.0076mm.Measurable materials: aluminum, aluminum, soft metal, plastic, fiber, fire escape, composite materials, rubber or leather.Glass fiber reinforced plastic etc.

 Application

  Barcol hardness tester is mainly used to test aluminum and aluminum alloy.Test aluminum profiles, plates, pipes, rods, aluminum alloy castings, forgings, machined parts, ultra-thick aluminum alloy materials and assembled aluminum products

 Another major application of the barcol hardness tester is to test FRP (fiberglass reinforced plastics) and hard plastics

  Main technical parameters

Model Number	HBA-1	934-1
Range	0-100HBa，25-135HBW
Resolution	0.5BHa
Basic Error	42-48BHa±2BHa	81-88BHa±1BHa
Repeatability Rrror of Measurement	42-48BHa±2.5BHa	81-88BHa±1.5BHa
Indenter	26°frustum of cone，Diameter0.157mm
Weight	0.5kg
