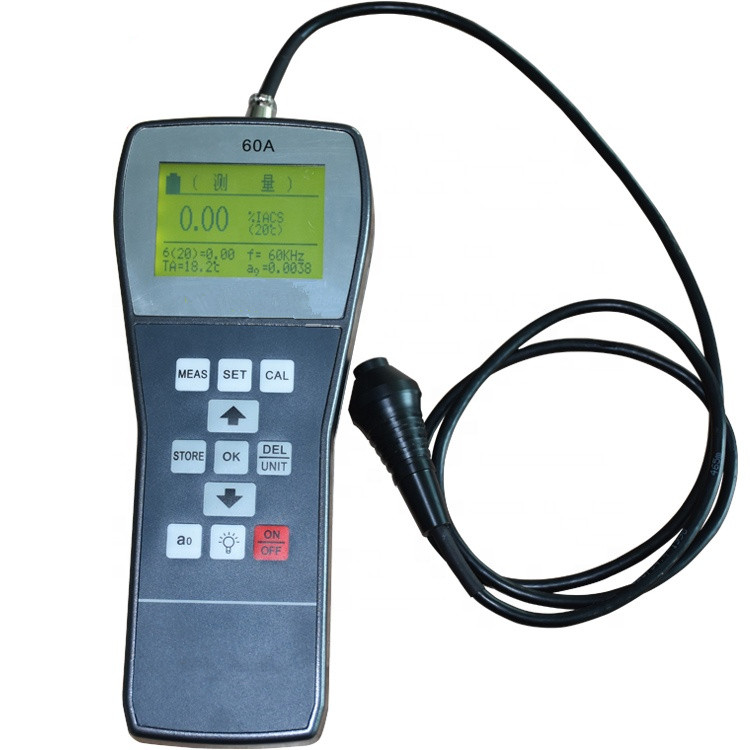

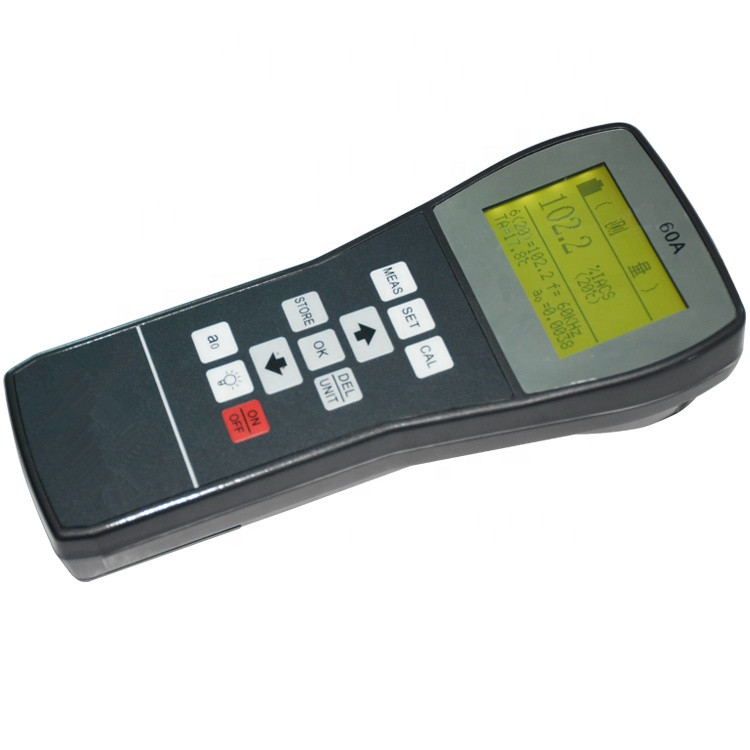

digital portable eddy current electrical conductivity meter
60A Series Portable Digital eddy current conductivity meter is a digital conductivity meter designed by our company, which is the leading product in China and has the leading technology performance, which can replace foreign similar products, and applies eddy phase detection method. It can be used for the examination of electrical conductivity, classification and classification of non ferromagnetic metals. It is widely used in metallurgical, mechanical, electrical and electrical engineering, aviation, aerospace, nuclear industry, military industry and other industrial sectors.
|
Working frequency
|
60 KHz sine wave
|
||
|
Electrical conductivity measurement range
|
from 7.76% IACS to 110%IACS, 4.5MS/m to 64MS/m or resistivity from 1.560 to 22.22 Omega cm
|
||
|
Resolution
|
0.01%IACS (less than 51%IACS);
0.1%IACS (range from 51%IACS to 110%IACS) |
||
|
The measurement accuracy
|
+ 0.5% (temperature at 20 C); + 1% (temperature at 0 C ~40 C)
|
||
|
Lift off effect probe compensates
|
0.5 mm
|
||
|
Temperature measurement
|
from 0 to +50 C (0.5 degrees C)
|
||
|
Automatic compensation functional
|
conductivity measurement results are automatically corrected to 20 degrees centigrade.
|
||
|
The temperature of normal working environment
|
0 ~ +50, and relative humidity is 0 ~ 95%
|
||
|

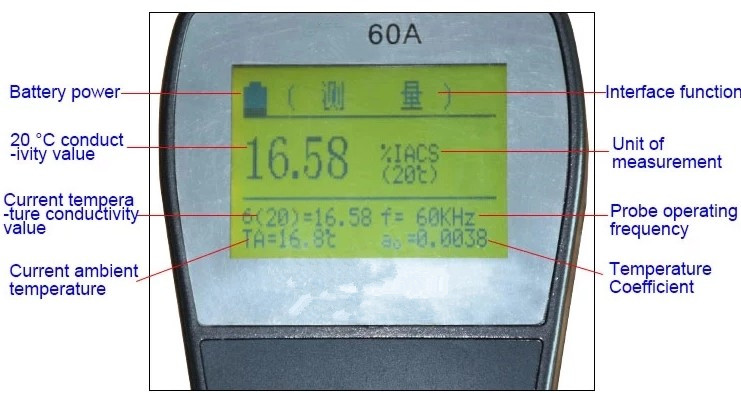

Display screen
|
liquid crystal with backlight
The screen displays a number of important parameters at the same time |
||
|
Power supply
|
2500mA/h lithium ion battery
|
||
|

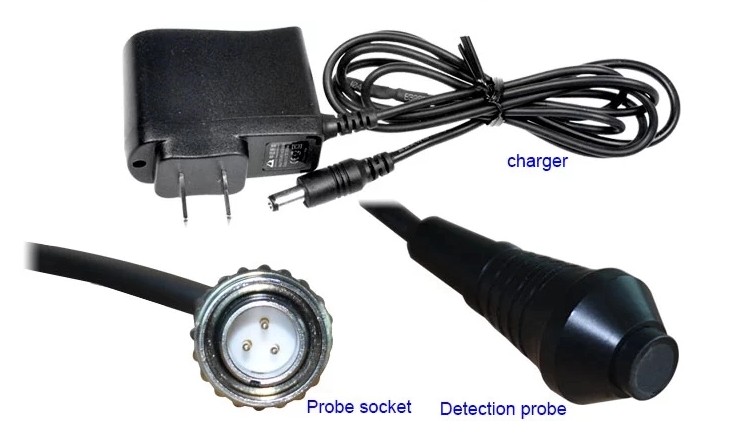

Probe
|
With a diameter of 14 mm probe ,working frequency of 60 KHz.
|
||
|
Reading memory
|
save 500 sets of measured data
|
||
|
Shape size
|
220 mm x 95 mm x 55 mm
|
||
|
host Weight
|
0.5KG (containing battery)
|
||
