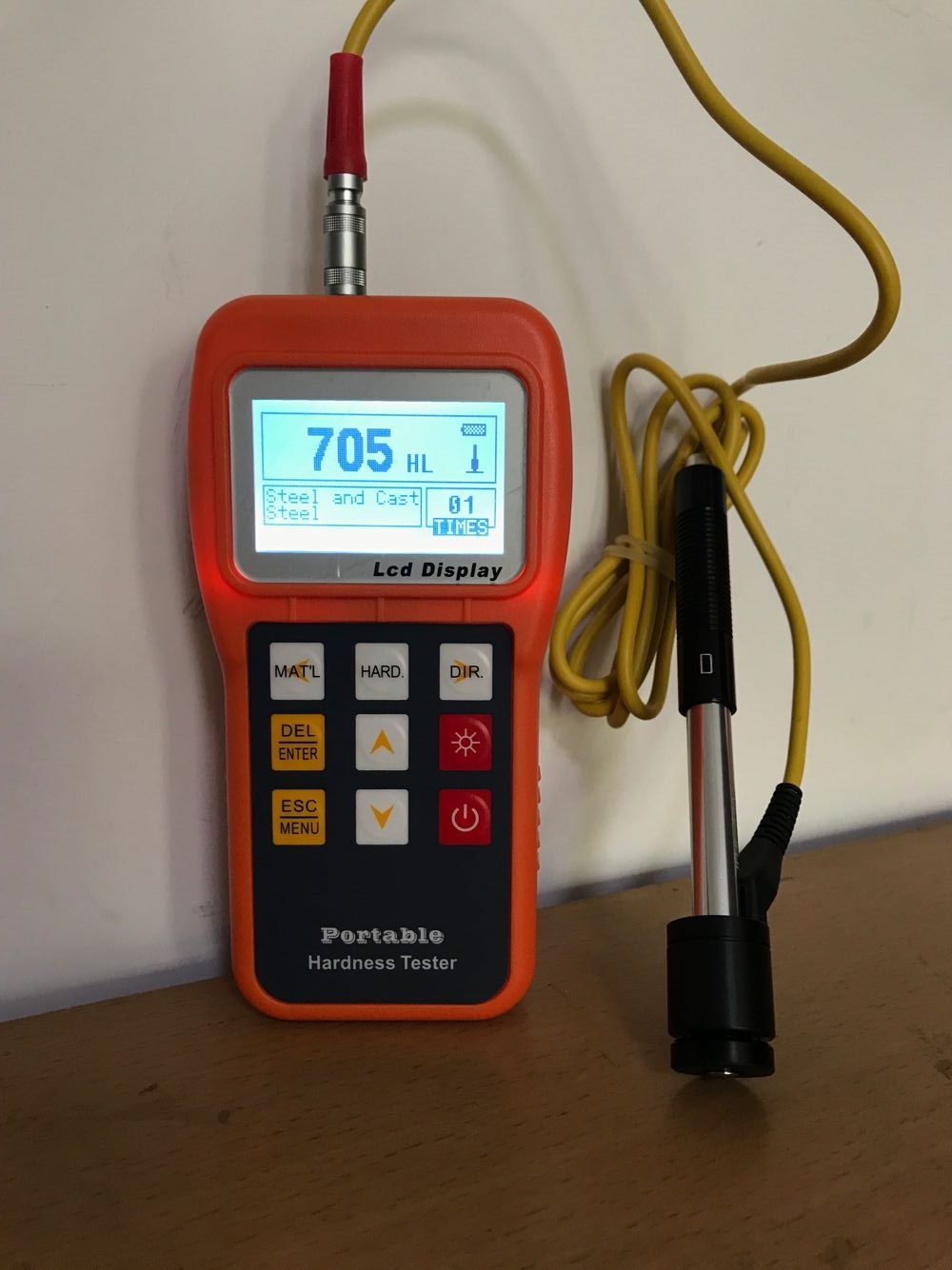

Features
● LCD display of 128×64 matrix is used.
● Hardness scales(HV ,HB,HRC,HRB,HRA,HS).
● RS232 interface and USB to PC
● Max 600 groups（impact times:32～1）of data can be stored at internal.
● Back light display has been used to make convenient or the user in poor light.
● Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit.
● Material of “cast steel” is added HB values can be read out directly when D/DC impact device is used to measure “cast steel” workpiece.

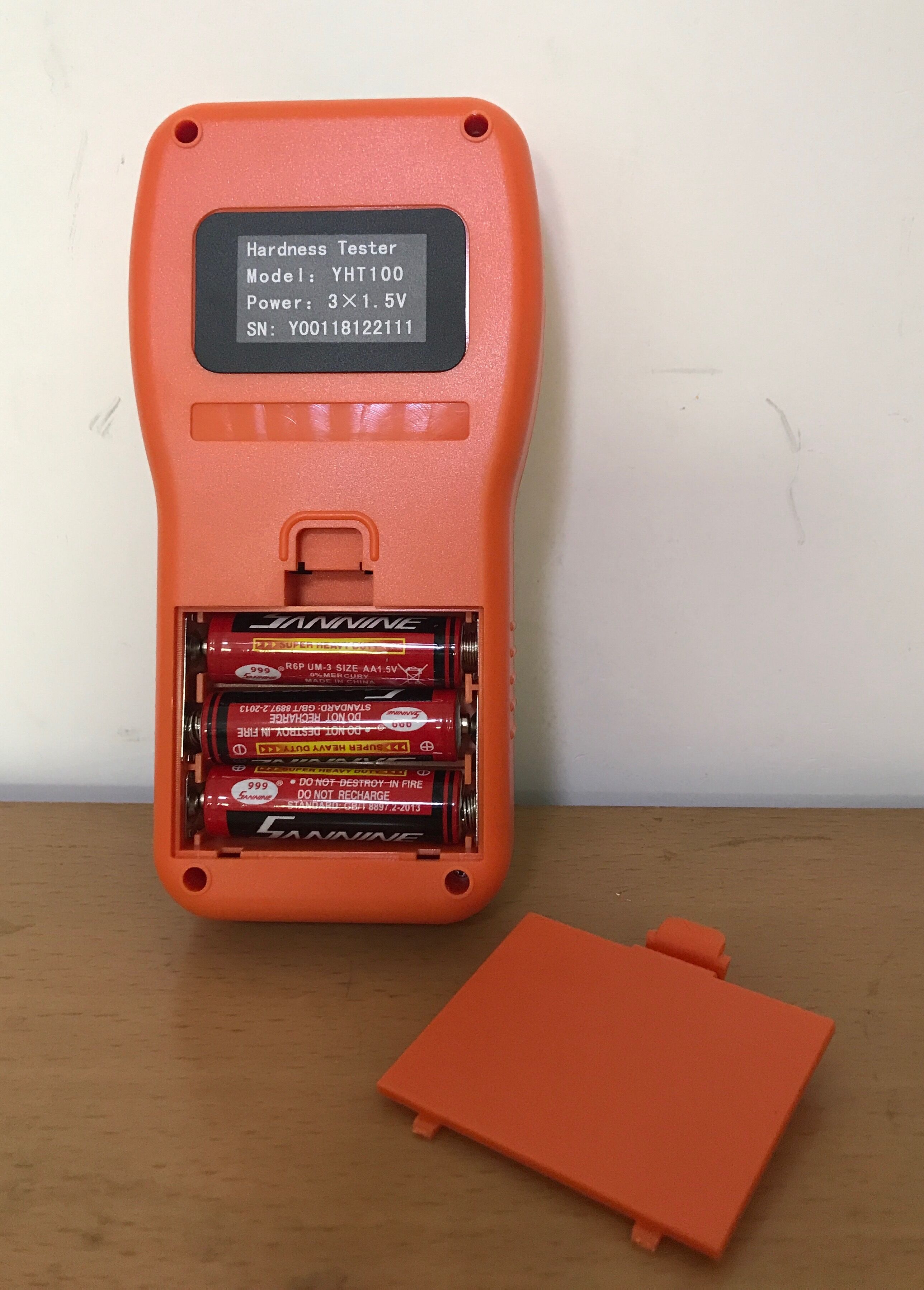

● Power is two of AA battery. Continuous working period: approx. 100 h (no back light on).
● Software of PC can be installed according to the requirements of user. The function will be more powerful to satisfy the more demands of quality control and management.
Technical Specification
|
Hardness scale |
HL, HB, HRB, HRC, HRA, HV, HS |
|
Memory |
Data memory: 48～600 groups （impact times: 32～1） |
|
Measuring range |
HLD ( 170~960 ) HLD |
|
Standard Impact Device |
D |
|
Optional Impact Devices |
DC, D+15, G, C, DL |
|
Power |
2*1.5V |
|
Continuous Working time approx. |
100 h (without back light on) |
|
Display LCD, |
128×64 matrix LCD |
|
Operating temperature |
-10℃~40℃ |
|
Humidity |
≤90% |
|
Dimensions |
152×76×33mm (main unit) |
|
Weight approx. |
0.6kg (main unit)
|
Optional probes and technical specification
|
|
No. |
Name |
Quantity |
Note |
|
Standard Delivery |
1 |
Main unit |
1 |
|
|
2 |
D type impact device |
1 |
|
|
|
3 |
Small supporting ring |
1 |
|
|
|
4 |
Nylon brush (A) |
1 |
|
|
|
5 |
High value Leeb test block |
1 |
|
|
|
6 |
Instruction Manual |
1 |
|
|
|
7 |
Box Of Instrument |
1 |
|
|
|
Additional Optional Delivery
|
1 |
Communication cable |
1 |
|
|
2 |
YHT-200 DataView Software |
1 |
|
|
|
3 |
Printer |
1 |
|
|
|
|
|
|
|
|
