High quality printer configuration portable digital metal multifunctional leeb hardness tester
The properties of Leeb hardness tester
1. Mutual conversion between six kinds of hardness (HL, HRB, HRC, HB, HV and HS) and between the hardness and tensile strength

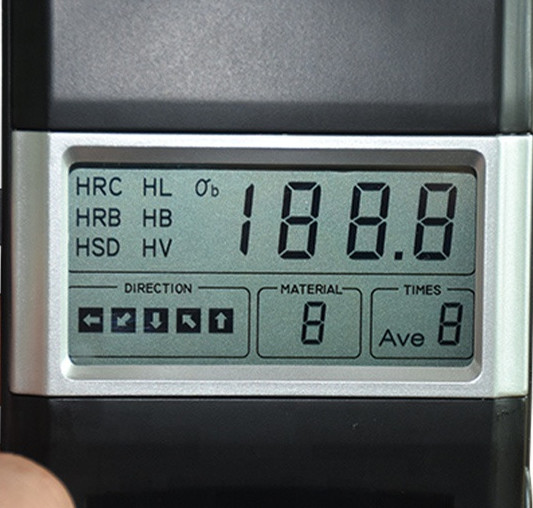

2. It can display the information of measuring value, average value, date, impact direction, test times, test material, hardness system and so on.
3.A host can be equipped with 7 different impact devices, without calibration, automatic recognition
4. Test date and code can be entered
5.Showing soft calibration function
6.There are charging instructions and low voltage alarm function

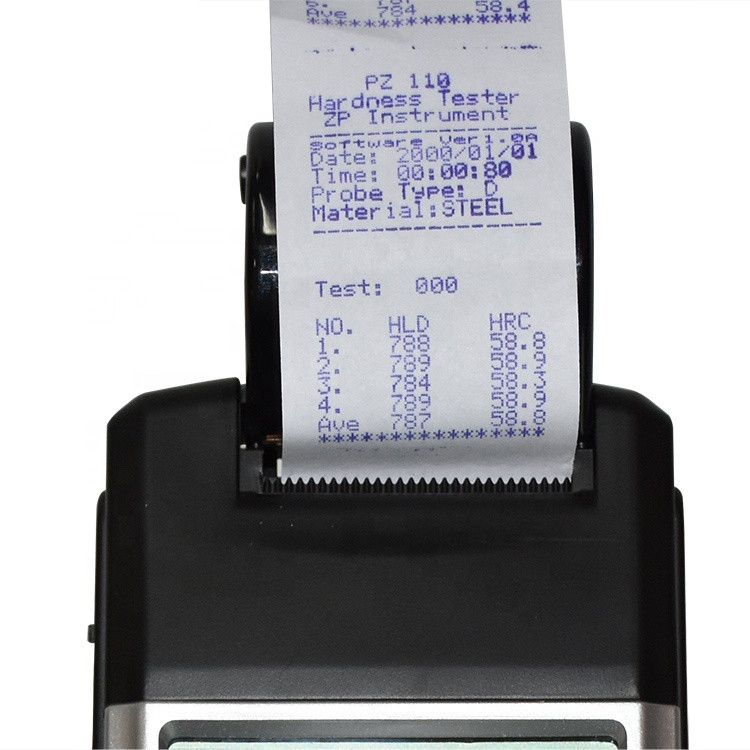

7.Any test results can be printed
8.Automatic shutdown
9.The recharge battery can be replaced by itself
Technical Parameters
|
Testing Range
|
(170~960) HLD (17.9-69.5) HRC
|
|
Measurement direction
|
360 degrees
|
|
Indicator repeatability
|
6HLD (HLD=760)
|
|
Hardness system
|
Richter, Shaw, brucelli, Roche B, Roche C, Vivtorinox
|
|
Indication error
|
+ 6HLD (HLD=760)
|
|
The use of temperature
|
from 0 to 40 degrees centigrade
|
|
Print paper diameter
|
40mm
|
|
The width of the printed paper
|
44.5 + 0.5mm
|
|
Charge time
|
2 to 3.5 hours
|
|
Rechargeable power supply
|
12V/600mmA
|
|
The relative humidity
|
less than 90%
|
|
Shape size
|
235 x 90 x 47mm
|
|
Weight
|
0.615kg
|
|
Package size
|
48*39*17cm
|
|
total weight
|
6kg
|
